Miller Dynasty 400 Wireless AC/DC TIG/Stick Welder Package with Water Cooler and Running Gear (951000263)

The Ultimate AC/DC TIG Welding System – Wireless and Ready to Work

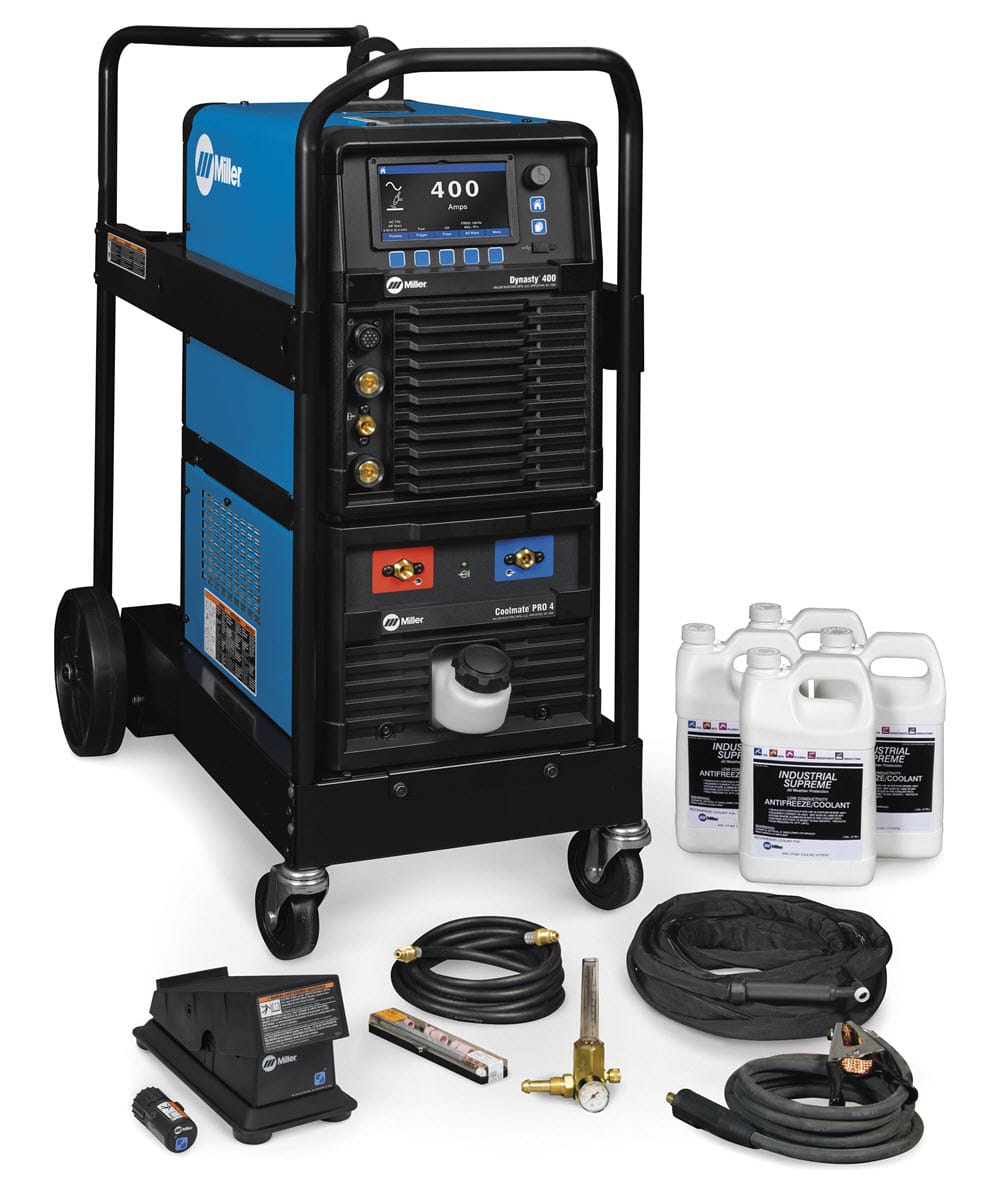

The Miller Dynasty 400 is a professional-grade 400-amp AC/DC inverter welder built for the most demanding industrial applications, including precision fabrication, heavy aluminum ship repair, aerospace work, and pipe welding. This complete package includes everything you need: the welder, a wireless remote foot control, the Coolmate 4 PRO water cooler with coolant, a Weldcraft W-375 TIG torch kit, a running gear cart with cylinder rack, and a gas regulator with hose.

The Dynasty 400 is powered by Miller’s Auto-Line technology, which automatically accepts any input voltage from 208 to 600 volts on either single-phase or three-phase power, with no manual linking required. This makes it incredibly versatile for job sites around the world, where power supplies can vary. It also delivers reliable performance even on dirty or unstable power sources.

Unmatched AC TIG Capability for Aluminum

What truly sets the Dynasty 400 apart is its advanced AC TIG welding capabilities, making it the go-to choice for aluminum fabrication. The AC output is fully adjustable, with balance control from 30% to 99% and frequency adjustment from 20 to 400 Hz. This allows you to fine-tune the arc for precise oxide cleaning and penetration, whether you are welding thin gauge aluminum sheet or thick plate. Advanced AC waveforms give you the ability to shape the arc to suit the joint and material, delivering exceptional control and weld quality.

For DC TIG welding on exotic materials like titanium, Inconel, and stainless steel, the Dynasty 400 features advanced pulse technology with a range of 0.1 to 5,000 pulses per second. QuitePulse technology significantly reduces pulse chatter when using sine or triangular waveforms, delivering an exceptionally smooth and precise arc that is ideal for critical applications.

Smart Features for Maximum Productivity

The large 7-inch LCD display with a simplified user interface makes navigation and setup easy. The Pro-Set feature automatically configures welding parameters for you, eliminating guesswork and reducing setup time. For experienced welders, manual mode allows full customization of every parameter.

The built-in Cooler Power Supply (CPS) provides a dedicated receptacle for the Coolmate 4 PRO water cooler, which is included. The Cooler-On-Demand feature operates the cooling system only when needed, saving power and reducing wear. The Fan-On-Demand cooling system in the power source works similarly, minimizing noise and energy use.

The program memory function lets you name, save, and recall up to 100 favorite weld settings, making it easy to switch between different jobs and materials. Auto-Postflow adjusts the shielding gas post-flow time based on the amperage setting, protecting your tungsten electrode and eliminating manual adjustment.

What’s Included in the Box

This comprehensive package includes:

• Dynasty 400 AC/DC TIG/Stick welder with primary cord

• Wireless remote foot control with receiver (301580)

• Coolmate 4 PRO water cooler with four 1-gallon bottles of coolant

• Weldcraft W-375 TIG torch kit with accessories

• AK4C torch accessory kit with nozzles, collets, collet bodies, and 2% ceriated tungsten electrodes (1/16, 3/32, and 1/8 inch)

• Shielding gas regulator with hose

• Running gear cart with cylinder rack

• Quick reference guide

How to Use Your New Welder

Getting started is straightforward. Connect the primary cord to your available power source (single or three-phase, 208-600V), and the Auto-Line technology handles the rest. Fill the water cooler with the included coolant and connect the TIG torch cooling lines. Attach the Weldcraft W-375 torch to the front panel, connect your shielding gas, and set your gas flow. Use the 7-inch display to select your process (AC TIG, DC TIG, Pulsed TIG, or Stick), and either let Pro-Set suggest parameters or dial in your own settings in manual mode. For AC TIG welding, adjust the balance and frequency to match your aluminum thickness and desired weld characteristics. The wireless foot control gives you full amperage control without the hassle of cables.

Please Note
This package includes the wireless foot control and receiver. The Dynasty 400 is fully compatible with Miller’s wireless remote solutions. This is a complete AC/DC system capable of welding aluminum and all ferrous and exotic metals.

Key Benefits (Bullet Form for Features Section)

• Global Voltage Compatibility: Auto-Line technology accepts 208-600V, single or three-phase, with no manual linking required.

• Superior Aluminum Welding: Advanced AC balance and frequency control for precise oxide cleaning and penetration.

• Wireless Convenience: Included wireless foot control provides cable-free amperage adjustment for improved mobility.

• Complete Turnkey Package: Includes water cooler, torch kit, running gear, regulator, and coolant – ready to weld.

Specifications

• Processes: AC/DC TIG, Pulsed TIG, Stick (SMAW), Air Carbon Arc (up to 1/4 in.)

• Amperage Range: 400 amps AC/DC output

• Input Power: 208-600V, single or three-phase (Auto-Line)

• AC Frequency Range: 20 – 400 Hz

• AC Balance Range: 30 – 99%

• Pulse Range: 0.1 – 5,000 PPS

• Display: 7-inch LCD with simplified interface

• Cooling System: Coolmate 4 PRO water cooler with Cooler-On-Demand

• Wireless Remote: Included with receiver (301580)

• TIG Torch: Weldcraft W-375 with AK4C accessory kit

• Running Gear: Cart with cylinder rack included

Special Offer Note

This welder is backed by Miller’s True Blue warranty and is eligible for applicable Miller rebate programs. Contact your Miller representative for current offers.
